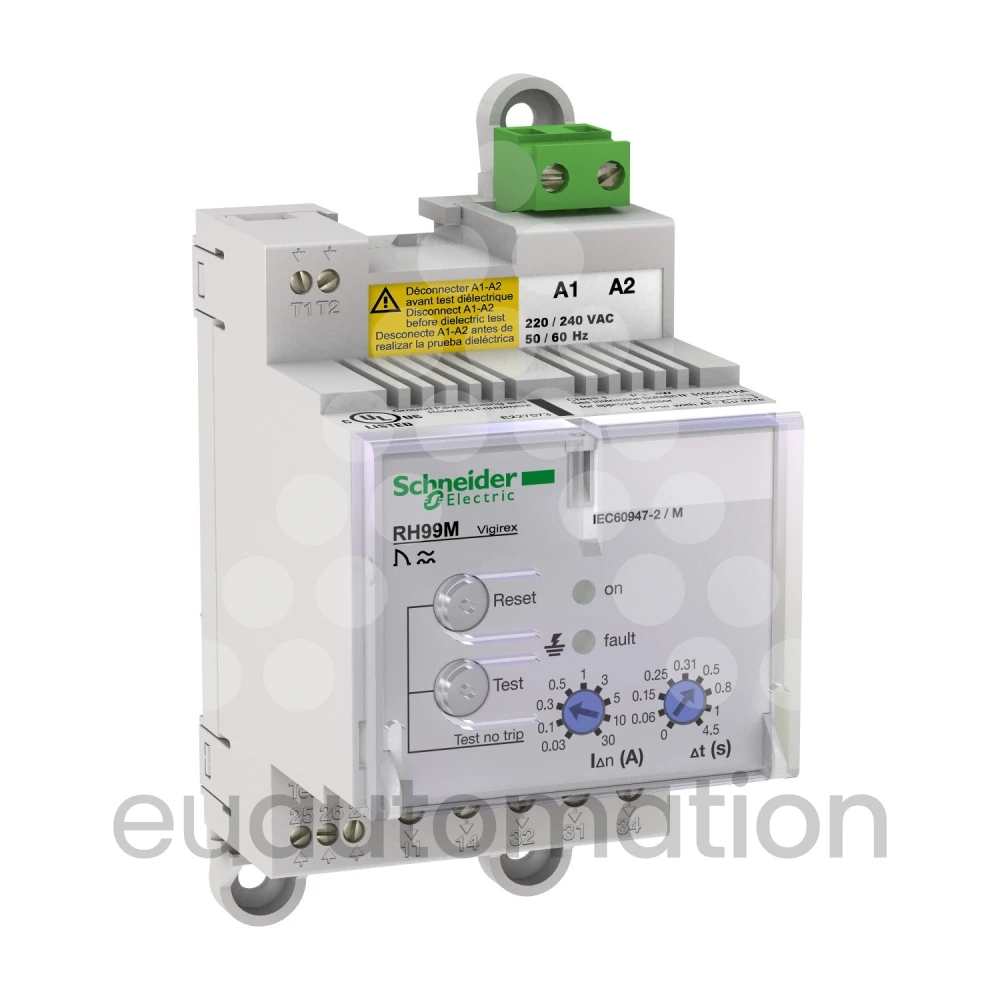

56173
Schneider 56173 available at EU Automation. Get in touch today for a quick price.
Based on over 4900 reviews
Full 12-month warranty
Available for dispatch immediately
We deliver worldwide
What happens next?
1. Email confirmation
You will get an email confirming that we have received your enquiry.
2. Dedicated Account Manager
One of our team will be in touch to confirm your part(s) specification and condition.
3. Your quote
You will receive a comprehensive quote tailored to your specific needs.
All orders are subject to product availability. See our T&Cs.
Ask our team
What happens next?
1. Email confirmation
You will get an email confirming that we have received your enquiry.
2. Dedicated Account Manager
One of our team will be in touch to confirm your part(s) specification and condition.
3. Your quote
You will receive a comprehensive quote tailored to your specific needs.
| Specification | Description |
|---|---|
| Part Number | 56173 |
| Manufacturer | Schneider |
| Product Type | Residual Current Protection Relay |
| Application | Protection Relay |
| Mounting Support | DIN Rail |
| Earth-Leakage Protection Class | Type A |
| Type of Setting | Selector |
| Earth-Leakage Sensitivity | Adjustable 9 settings, 0.03…30 A |
| Earth-Leakage Time Delay | Instantaneous for 0.03 A, Adjustable 9 settings 0…4.5 s for 0.03…30 A |
| Current Sensors Compatibility | VigiPacT TOA, A, and L Earth Leakage Current Sensors |
| Conventional Enclosed Thermal Current | 8 A |
| Minimum Load | 10 mA at 12 V |
| Rated Supply Voltage | 220...240 V AC 50/60 Hz 55...110 % |
| Power Consumption | 4 VA |
| Monitored Distribution System | 1000 V - AC at 50/60 Hz (maximum), 1000 V - AC at 400 Hz (maximum) |
| Earthing System | TN-S, TT, IT |
| Rated Impulse Withstand Voltage | 8 kV |
| Reset | Manual Reset |
| Dimensions | Height: 97 mm, Width: 54 mm, Depth: 74 mm |
| Ambient Air Temperature for Operation | -35…70 °C |
| Ambient Air Temperature for Storage | -55…85 °C |
| Electromagnetic Compatibility | Compliant with CISPR 11, IEC 61000-4-6, IEC 61000-4-2, IEC 61000-4-5, IEC 61000-4-4, IEC 61000-4-3 |
| Sustainable Offer Status | Green Premium Product |
| REACh Regulation | REACh Declaration |
| EU RoHS Directive | Compliant |
| Mercury Free | Yes |
| RoHS Exemption Information | Yes |
| China RoHS Regulation | China RoHS Declaration |
| Product Out of China RoHS Scope | Substance Declaration for Your Information |
| Environmental Disclosure | Product Environmental Profile |
| Circularity Profile | End of Life Information |
What is the main application of this Schneider part?
The Schneider 56173 is a Residual Current Protection Relay. It is primarily used for protection against earth leakage currents in electrical systems.
What are the key features of this part?
The Schneider 56173 offers adjustable earth-leakage sensitivity from 0.03 to 30A and an adjustable time delay. It is compatible with VigiPacT TOA, A, and L earth leakage current sensors. It also has a manual reset feature.
What is the supply voltage for this part?
The rated supply voltage for the Schneider 56173 is 220 to 240 V AC at 50/60 Hz.
What is the mounting support for this part?
The Schneider 56173 is designed for DIN rail mounting.
What is the earth-leakage protection class of this part?
The Schneider 56173 falls under the Type A earth-leakage protection class.
What is the operating temperature range for this part?
The Schneider 56173 can operate in ambient air temperatures ranging from -35 to 70 degrees Celsius.
What is the IP protection level of this part?
The Schneider 56173 has an IP protection level of IP40 on the front face, IP30 on side parts, and IP20 on connection terminals.
What is the weight of this part?
The Schneider 56173 weighs approximately 0.3 kg.
Is this part RoHS compliant?
Yes, the Schneider 56173 is compliant with the EU RoHS Directive.
- Protection of electrical circuits in industrial settings by detecting and preventing residual currents.
- Ensuring safety in residential and commercial buildings by preventing electrical shocks and fires caused by earth faults.
- Use in earth-leakage circuit breakers to disconnect the power when dangerous levels of residual current are detected.
- Integration into power distribution systems in facilities with high electrical load such as data centers, hospitals, and manufacturing plants.
- Enhancing the safety of electrical systems in environments with increased risk of electrical faults, such as wet or damp conditions.
- Use in conjunction with VigiPacT TOA, A, and L earth leakage current sensors for comprehensive protection.
- Ensuring compliance with electrical safety regulations and standards in various regions and industries.
