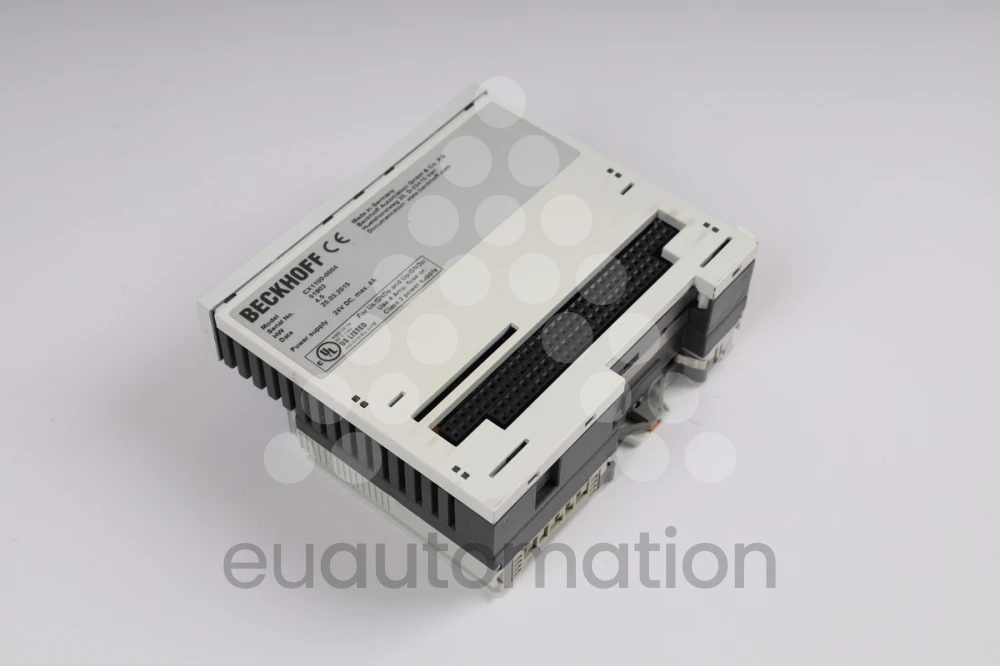

The Beckhoff CX1100-0004 Power Supply Unit is a compact and robust module designed to seamlessly integrate with CPU units, particularly within the Beckhoff CX series of embedded PCs. This power supply unit is engineered to deliver a stable 24 V DC power output, with a tolerance range that accommodates fluctuations between -15% and +20%, ensuring reliable performance even in demanding industrial environments.
With a modest footprint of 40 x 91 x 100 mm, the CX1100-0004 is an ideal choice for space-constrained applications. It boasts a maximum power consumption of just 3.5 W, making it an energy-efficient solution for your control systems. The unit is also equipped with an E-bus interface, which allows for the connection of EtherCAT Terminals, streamlining the process of system expansion and modular integration.
One of the standout features of the CX1100-0004 is its FSTN display, which provides two lines of 16 characters each, backlit for clear visibility. This display is instrumental in relaying system and user messages, facilitating easier monitoring and diagnostics. Additionally, the unit includes an 8 kByte NOVRAM for the fail-safe storage of process data, ensuring that critical information is preserved in the event of a power disruption.
The power supply unit is designed with durability in mind, featuring vibration and shock resistance that conforms to EN 60068-2-6/EN 60068-2-27/29 standards. It also meets the stringent requirements of EMC immunity and emission according to EN 61000-6-2/EN 61000-6-4, providing assurance of stable operation in the presence of electromagnetic disturbances.
For ease of installation, the CX1100-0004 utilises a Cage-Clamp connection system, which offers a secure and maintenance-free connection for the adapter terminal. The unit's protection class is IP 20, indicating that it is protected against solid objects larger than 12.5 mm but not against water, making it suitable for use in dry and controlled environments.
Overall, the Beckhoff CX1100-0004 Power Supply Unit is a reliable and efficient choice for powering your embedded PC systems, offering a blend of performance, ease of use, and durability that is well-suited for a variety of industrial applications.
With a modest footprint of 40 x 91 x 100 mm, the CX1100-0004 is an ideal choice for space-constrained applications. It boasts a maximum power consumption of just 3.5 W, making it an energy-efficient solution for your control systems. The unit is also equipped with an E-bus interface, which allows for the connection of EtherCAT Terminals, streamlining the process of system expansion and modular integration.
One of the standout features of the CX1100-0004 is its FSTN display, which provides two lines of 16 characters each, backlit for clear visibility. This display is instrumental in relaying system and user messages, facilitating easier monitoring and diagnostics. Additionally, the unit includes an 8 kByte NOVRAM for the fail-safe storage of process data, ensuring that critical information is preserved in the event of a power disruption.
The power supply unit is designed with durability in mind, featuring vibration and shock resistance that conforms to EN 60068-2-6/EN 60068-2-27/29 standards. It also meets the stringent requirements of EMC immunity and emission according to EN 61000-6-2/EN 61000-6-4, providing assurance of stable operation in the presence of electromagnetic disturbances.
For ease of installation, the CX1100-0004 utilises a Cage-Clamp connection system, which offers a secure and maintenance-free connection for the adapter terminal. The unit's protection class is IP 20, indicating that it is protected against solid objects larger than 12.5 mm but not against water, making it suitable for use in dry and controlled environments.
Overall, the Beckhoff CX1100-0004 Power Supply Unit is a reliable and efficient choice for powering your embedded PC systems, offering a blend of performance, ease of use, and durability that is well-suited for a variety of industrial applications.
| Specification | Description |
|---|---|
| Part Number | CX1100-0004 |
| Alternative Part Number | CX11000004 |
| Manufacturer | Beckhoff |
| Power Supply Type | Power Supply Unit for CPU |
| Input Voltage | 24 V DC |
| Input Voltage Tolerance | -15% / +20% |
| Output Current | 2 A |
| Max. Power Consumption | 3.5 W |
| Recommended Fuse at 24 V | 4 A |
| Connection Type | Cage-Clamp (adapter terminal) |
| NOVRAM | 8 kByte |
| Display | FSTN display 2 lines x 16 characters of text, illuminated |
| I/O-DPRAM | Not required |
| Diagnose LED | 1 x PWR, 1 x L/A Run, 1 x RUN |
| Dimensions | 40 mm x 100 mm x 91 mm |
| Weight | Approx. 250 g |
| Operating Temperature Range | 0° C to +55° C |
| Storage Temperature Range | -25° C to +85° C |
| Relative Humidity | 95% non-condensing |
| Vibration/Shock Resistance | Conforms to EN 60068-2-6 / EN 60068-2-27/29 |
| EMC Resistance | Conforms to EN 61000-6-2 / EN 61000-6-4 |
| Protection Class | IP 20 |
| Commodity Code | 853690 |
| E-Bus Connection | Yes (adapter terminal) |
| E-Bus Power Supply | Up to 2 A |
What are the power specifications for this Power Supply Unit?
The Power Supply Unit is designed to operate with a 24 V DC power supply, with an allowable range of -15% to +20%. It has a maximum power consumption of 3.5 W and should be used with a recommended fuse rating of 4 A.
Can this Power Supply Unit be used with EtherCAT Terminals?
Yes, the Power Supply Unit is equipped with an E-bus interface suitable for connecting EtherCAT Terminals. It allows the I/O data to be stored directly in the main memory of the CPU, eliminating the need for a DPRAM.
What type of display does the Power Supply Unit feature?
The unit features an FSTN display that provides 2 lines of 16 characters each, and it is illuminated for better visibility.
What is the function of the NOVRAM in this Power Supply Unit?
The NOVRAM in the Power Supply Unit is used for the voltage-failure-proof storage of process data, ensuring that critical information is retained in the event of a power disruption.
What are the dimensions and weight of this Power Supply Unit?
The dimensions of the Power Supply Unit are 40 mm in width, 100 mm in height, and 91 mm in depth. It weighs approximately 250 grams.
What environmental conditions is the Power Supply Unit rated for?
The unit is designed to operate within a temperature range of 0° C to +55° C and can be stored in temperatures ranging from -25° C to +85° C. It can withstand relative humidity levels of up to 95% without condensation.
How does the Power Supply Unit indicate its operational status?
The unit is equipped with diagnostic LEDs that indicate power (PWR), link/activity (L/A), and run status, providing a quick visual reference to the operational state of the unit.
What type of connections does the Power Supply Unit support?
The unit supports an E-bus connection through an adapter terminal. However, it does not have K-bus or IP-Link connections.
What is the vibration and shock resistance of this Power Supply Unit?
The Power Supply Unit conforms to EN 60068-2-6 for vibration resistance and EN 60068-2-27/29 for shock resistance, ensuring durability in industrial environments.
What is the protection class of the Power Supply Unit?
The unit has a protection class of IP 20, indicating that it is protected against solid objects larger than 12.5 mm but not against water ingress.
- Powering Beckhoff CX series Embedded PCs
- Supplying 24 V DC power to industrial control systems
- Providing power for modular control systems on DIN rails
- Serving as a power source for PC-based automation systems
- Utilised in scalable control systems within control cabinets or terminal boxes
- Ensuring fail-safe storage of process data through integrated NOVRAM
- Offering a visual interface for system and user messages via an LCD display
- Supporting EtherCAT Terminals through E-bus interface for expanded I/O capabilities
- Used in environments requiring vibration and shock resistance in industrial settings
- Suitable for applications demanding EMC immunity and emission compliance
